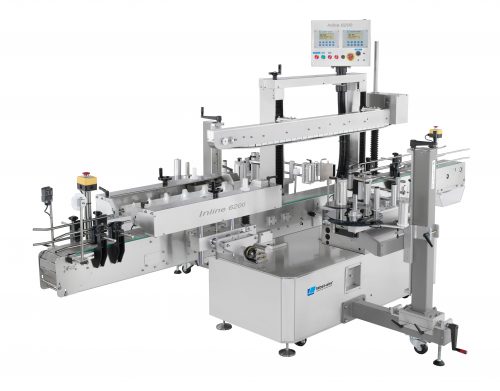

Label-Aire Inline Series 6200-TS

Item: 6200-TS

The NEW Label-Aire® Inline 6200-TS labeling system offers you a wealth of options and configurations to make labeling easier and faster.

The Inline 6200-TS’s sheer flexibility allows you to build a labeling system to fit seamlessly in your production line. The Inline 6200-TS also delivers on Label-Aire's long-standing promise of advanced features, toughness, speed, and accuracy meaning lower operating costs and increased productivity for your business.

The NEW advanced yet rugged Inline 6200-TS labeling system is a stainless steel cabinet based PLC-controlled labeling system designed for heavy duty front/back-, side panel-, or wrap labeling applications. Among its standard features are a rotating control panel, a 12 foot (3,658 mm) delrin chain conveyor with stainless steel side plates, and a segmented top trap hold down to keep your products in place. Other standard features include Automatic Speed Following (ASF) for product surface profiling, Variable Frequency Drive (VFD), and dual applicator mounts with in/out traverse, up/down, with tilt adjustments for maximum versatility. Standard speeds up to 2,000 inches (50.8 m) per minute with VFD make the 6200 the ideal choice for demanding applications requiring speed and precision. The 6200-TS’s long list of options include a choice of Label-Aire New Generation 3100/3000 Series applicators (wipe-on, air-blow, or tamp-blow), wrap belt, single or dual feedscrews, stainless steel side plates, stainless steel frame, stainless steel cabinet, airfill capability, and powered or nonpowered impressors.

Put this high-speed labeling technology to work for you all day, every day. The Inline 6200 is built to meticulous quality standards and designed to work in the most hostile environments.

NOT AVAILABLE FOR THE EUROPEAN MARKET

Features

  • Main Drive:
    Line Speed Variable Frequency Drive (VFD) up to 2,000″ (50.8 m) per minute
  • Conveyor: Stainless Steel Side Plates
    Width 6.0″ (152.4 mm)
    Length 12' (3,657.6 mm) center line-to-center line
    Height 36″ (914.4 mm) ± 2″ (50.8 mm)
  • Applicator: Label-Aire 3100 Series Primary Applicators
  • Operator Interface:Dual Keypad for Applicators, Push Button Start/Stop for Conveyor
    Control PLC
  • Top Trap Hold Down: Spring Segmented Blocks, Linatex Belt
    Vertical Adjustment 16.0″ (406.4 mm)
    Belt Width 1.25″ (31.75 mm)
    Drive Direct
    Airfill Optional
  • Feedscrew: Single or Dual
    Length Options 30″ (762 mm)
    Drive Direct Soft Start Yes
  • Metering Wheel: Single
    Drive DC Motor
  • Wrap Belt: 7.0″ (177.8 mm) Wide x 12.0″ (304.8 mm) Long
  • Secondary Impressors (Opt.):
    Powered Available
    Non-Powered Available

Specs

  • Dimensions:
    Height: 79.34″ (2,015.25 mm)
    Length: 144″ (3,658 mm)
    Width:* 33.94″ (862 mm)
  • Weight:
    Approx. 1,800 lbs. (817 kg)
  • Standard Label Dimensions: **
    Max. Web Width: 7.13″ (181 mm)
    Min. Web Width: .63″ (16 mm)
    Min. Label Length: .5″ (13 mm)
  • Label Packaging: **
    12″ (305 mm) O.D. rolls std. on 3″ (76 mm) I.D. cores
    Up to 16″ (406 mm) or 20″ (508 mm) roll with optional 16″ (406 mm) non-powered rewind or 20″ (508 mm) powered unwind
  • Conveyor Speed:
    Up to 2,000″ (50.8 m) per minute with Variable Frequency Drive (VFD)
  • Label Dispense Accuracy: **
    Up to +/- 1/32″ (.8 mm)
  • Electrical:
    120 Volts AC 60 Hz 20 Amps.,
    220 Volts AC 50 Hz optional (CE)
  • Air:
    2 cfm at 60 psi to 90 psi required with imprinter and/or airfill options

*Without label applicators
**Model 3115 Wipe-On specifications
