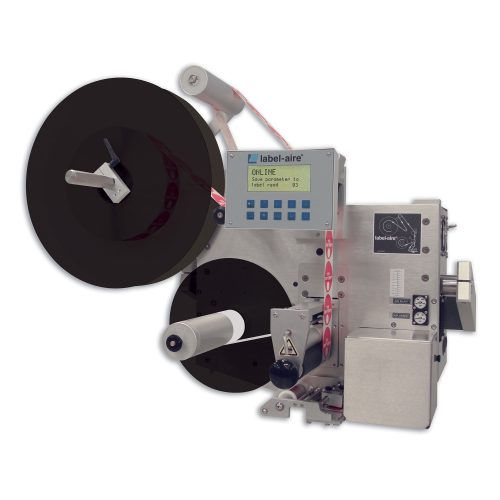

Label-Aire 3111-TS Air-Blow Primary Applicator

Item: 3111-TS

Underneath the skin of the NEW Label-Aire® 3111-TS Air-Blow Primary Applicator is an advanced labeler that offers speed, precision, reliability, and ease of use-all the things you’ve come to expect from Label-Aire. What you get in return are lower operating costs and increased productivity for your operation.

The Label-Aire Model 3111-TS was designed for high-speed air-blow labeling applications at a standard dispense speed of up to 1,500″ (38.1 m) of web per minute or up to 2,000″ (50.8 m) with the optional powered rewind. Advanced features include Velocity Compensation for improved label placement accuracy, a microprocessor controller with digital display, and ambidextrous parts. Zero Downtime Labeling allows your production to continue without costly interruptions. Missing label compensation virtually eliminates unlabeled products. Furthermore, the 3111-TS comes standard with a heavy duty double stack stepper motor-at no extra charge. The standard 7.13″ (181 mm) wide applicator can be configured with a 4.13″ (105 mm) wide or a 7.13″ (181 mm) wide air grid. Not only can the 3111-TS be easily converted to left- or right-hand use, it can also apply labels to the top, side, or bottom of products with a label dispense accuracy of up to +/- 1/32″ (.8 mm). Adding to the 3111-TS’s versatility are the availability of tamp-blow and wipe-on conversion kits.

Like every machine we make, the Model 3111-TS Air-Blow is built to Label-Aire’s meticulous quality standards. We’re Label-Aire and we’re the labeling machinery experts. Let the 3111-TS make labeling easy for you.

3111-TS Air-Blow Advanced Features

  • Automatic setup
    Includes multiple programmable label pages for easy changeovers to different label sizes.
  • Stepper motor drive
    For precise starting/stopping, increased reliability, wider range speed variability, and lower maintenance.
  • R3 digital display
    Select from five languages (English, French, German, Italian, Spanish), domestic or CE (European) configurations, standard/metric unit display and detailed alarm messages.
    Can rotate 360° in 90° increments.
  • Velocity Compensation
    For improved label placement accuracy.
  • Optional quick-action collapsible rewind
    Allows easy removal of scrap liner.
  • Optional smart powered rewind
    For dynamic web tension control.
  • Air-blow applicator
    Easily adapts to tamp-blow or wipe-on use.

Download Brochure


  • Dimensions:
    Height: 26.04″ (661.38 mm)
    Length: 34.78″ (883.46 mm)
    Width: 25.11″ (637.90 mm)
  • Weight: 140 lbs. (63.5 kg)
  • Standard Label Dimensions:
    Max. Web Width: 4.13″ (105 mm)*
    Optional 7.13″ (181 mm)** web width
    Min. Web Width: .63″ (16 mm)
    Min. Label Length: .75″ (19 mm) )
  • Label Packaging:
    16″ (406 mm) O.D. rolls std. on
    3″ (76 mm) I.D. cores
    20″ (508 mm) powered rewind and powered unwind
  • Dispense Speed:
    Up to 1,500″ (38.1 m) of web per minute (standard)
    Up to 2,000″ (50.8 m) of web per minute with smart powered rewind
  • Label Dispense Accuracy:
    Up to +/- 1/32″ (.8 mm)
  • Electrical:
    115 Volts AC 60 Hz 3 Amps.
    220 Volts AC 50 Hz optional
  • Air:
    4 cfm at 90 psi to 110 psi for most applications
  • Options:
    Smart 10″ (254 mm) powered rewind
    Smart 20″ (508 mm) powered unwind and powered rewind
    6″ (152 mm) label core adapter
    Encoder kit for Velocity Compensation
    Strobe signals for “low label” and “out of labels”
    Clear label sensor upgrade
    Hot stamp imprinter
    Display tilt mounting brackets
    Model 2700 T-Base stand
    Consult factory for additional options.*With 4.13″ (105 mm) wide air grid box
    **With 7.13″ (181 mm) wide air grid box
