CoPilot Gemini High-Resolution Industrial Inkjet Printing System

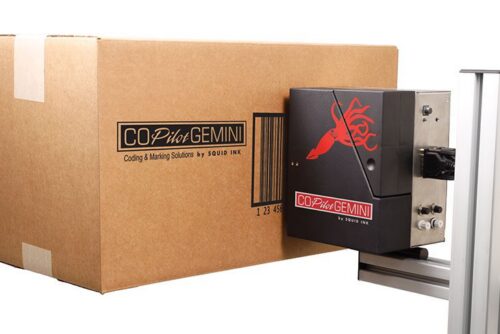

The Squid Ink CoPilot® Gemini is a large-format high-resolution industrial inkjet printer designed to produce sharp, consistent codes on porous and non-porous surfaces. With up to 5.6” of print height from a single printhead and production speeds up to 220 ft/min, the CoPilot Gemini provides a powerful and cost-effective solution for case coding, packaging, and label replacement applications across a wide range of industries.
Large Format Printing for Maximum Coverage

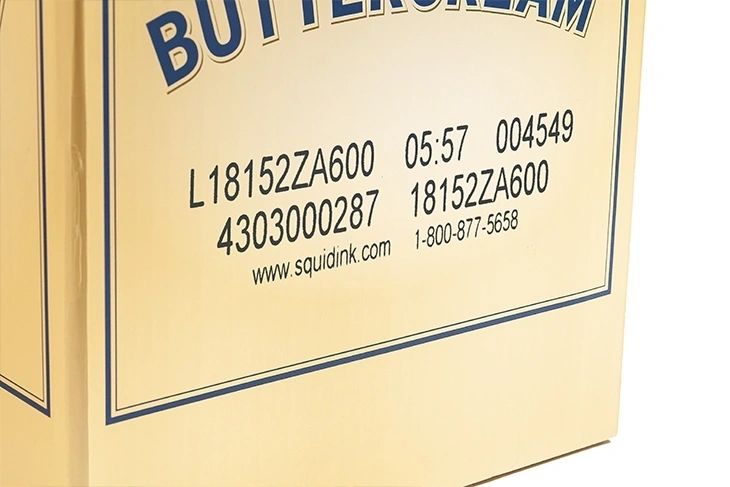

Featuring Squid Ink’s largest printhead, the CoPilot Gemini delivers bold, high-resolution text, crisp graphics, scannable GS1 barcodes, and professional logos at up to 360 dpi. The system is ideal for replacing labels by printing directly onto cartons, cases, and packaging materials—reducing label inventory and lowering overall operating costs.
Flexible Ink Options and Advanced Print Technology

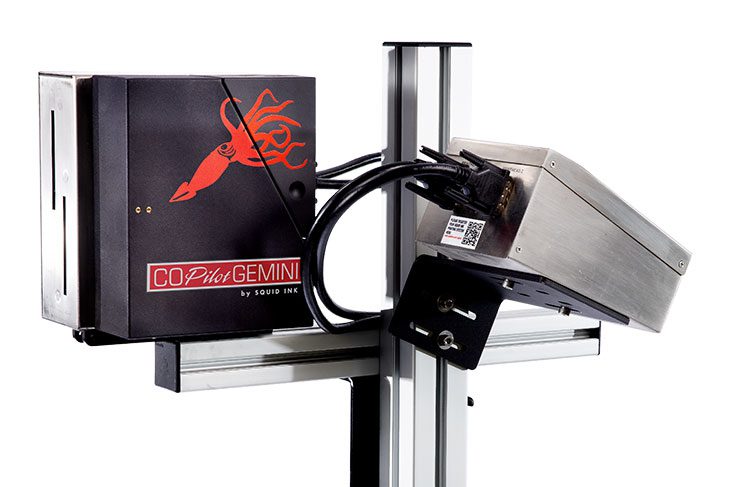

The CoPilot Gemini supports oil-based, solvent-based, and UV-LED curable inks for reliable adhesion and fast dry times on a wide variety of substrates. Its active ink system allows the printhead to be tilted or rotated in any direction without adjusting the ink supply, giving users maximum installation flexibility.
Operator-Friendly Control and Message Management

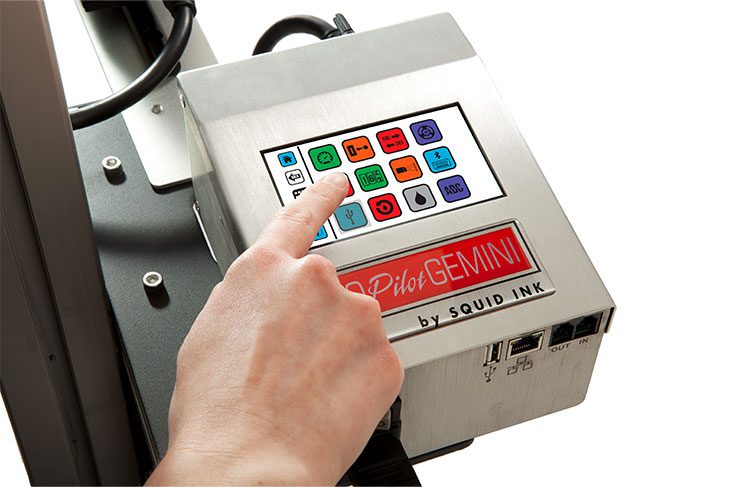

A bright 4.3” full-color touchscreen provides simple access to stored messages and printer controls. Messages are created and edited using Squid Ink’s Orion™ PC software and can be transferred via USB, Ethernet, wireless connection, or optional Windows® tablet for convenient message management directly on the production floor.
Benefits
- Print Technology – Piezo impulse printhead technology
- Maximum Print Height – 5.6” (14.2 cm)
- Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
- Horizontal Print Resolution – 150 or 300 dpi
System
- Print Technology – Piezo impulse printhead technology
- Maximum Print Height – 5.6” (14.2 cm)
- Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
- Horizontal Print Resolution – 150 or 300 dpi
- Print Speed – Up to 220 ft/min at 150 dpi; up to 110 ft/min at 300 dpi
- Time & Date – Internal real time clock with battery back-up
- Product Sensor – External photocell or optional encoder
- Communication Interface – One USB host and one Ethernet input
- Touchscreen – 4.3” (10.9 cm) full color touchscreen display
- Ink Cartridge Volume – 500ml cartridge
- Low Ink Indicator – Status alert on touchscreen, light beacon optional
- Substrate Capabilities – Porous or non-porous surfaces
- Electrical Requirements – 100 – 240 VAC, 50/60 Hz, 216VA maximum
- Operating Environment – 34–104°F (1–40°C)
- Agency Certifications – CE, TUV, FCC, UL, CSA
Software
- Time & Date – Full time and date functionality including expiration date and Julian Dates.
- Item Numbering – Sixteen counters, one of which can be a daily counter and production counter
- Shift Codes – Four programmable shift codes with automatic rollover
- Bar Codes – All standard bar codes including 2D
- Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
- Logos – Most image files supported with Orion software
- Printing Features – Reverse, invert, rotate, repeat; print on/off button
- Message Length – Up to 120” (3.05 m)
- Number of Messages – 1GB storage space will store approximately 1000+ messages
- Ink Usage – Shown in Orion software
- User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
- Wireless Connectivity – For wireless connection between PC or tablet and printer controller
- Database Capability – Ethernet communication protocol for external communication
- Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian, Polish
Optional Accessories
- Encoder – For operation with variable speed conveyors
- Bar Code Laser Scanner – Allows scan and print message retrieval
- External Light Beacon – Indicates low ink levels
- Wireless USB Device and Router – For wireless connectivity
- Windows Tablet – Pre-loaded with OrionTM software; includes mounting bracket with swivel arm, USB to ethernet cable and stylus
- Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
- Floorstand – Includes mounting brackets and legs with leveling feet; 59” (1.5m) total height
- Spring Loaded Printhead Bracket – Provides consistent throw distance with inconsistent boxes or products
- Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves
