SquidInk CoPilot Max

The CoPilot Max Hi-Resolution Printing System

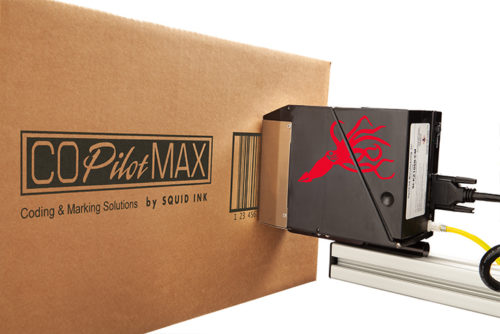

Squid Ink’s CoPilot® Max printing system is designed to print superior quality hi-resolution characters on porous surfaces. With up to 2.8” of print height per printhead and the ability to run up to 2 printheads from one controller, the CoPilot Max offers a versatile, yet cost effective solution for your coding and marking applications.

Make Your Mark

CoPilot Max utilizes Squid Ink’s revolutionary active ink system, allowing users the ability to tilt or rotate the printhead in any direction without making height adjustments to the ink supply. The system prints hi-resolution characters, razor-sharp text, scannable bar codes and great looking logos at up to 360 dpi, nearly twice the resolution of competitive printers in its class.

Affordable Product Coding

The CoPilot Max lets users meet the GS1 barcode specification for less. CoPilot Max consumable costs are typically 1/10 of the cost of paper labels, and eliminate pre-printed cartons and SKUs of label inventory. Any way you look at it, Squid Ink’s CoPilot Max provides users with an affordable solution to meet their ink jet coding needs.

CoPilot Max’s revolutionary active ink system allows conversion to downshooter mode in seconds.
CoPilot Max’s revolutionary active ink system allows conversion to downshooter mode in seconds.
Squid Ink’s proven inks and fluids are available in large 500ml no-mess cartridges.
Squid Ink’s proven inks and fluids are available in large 500ml no-mess cartridges.
The Squid Ink CoPilot Max hi-resolution industrial inkjet printer message on a non-porous surface
The CoPilot Max utilizes oil-based, or solvent-based inks for printing on a wide range of porous or non-porous substrates.
A 4.3” full color touchscreen provides access to the systems internal messages and print functions.
A 4.3” full color touchscreen provides access to the systems internal messages and print functions.
Squid Ink CoPilot Max hi-resolution industrial inkjet printer wireless tablet touchscreen controller
Manage messages wirelessly using the optional 10.1” full color touchscreen with Orion Software

Related Files

CoPilot Max Brochure

Benefits

  • Run up to two 2.8″ print heads from a single controller
  • Print up to 2.8” of hi-resolution characters, razor-sharp text, scannable bar codes, and great looking logos at 360 dpi
  • CoPilot Max’s 4.3″ full color touchscreen provides access to the system’s internal messages and print functions
  • Compatible with Squid Ink’s easy-to-use Orion™ message creation PC software

System

  • Print Technology -Piezo impulse printhead technology
  • Maximum Print Height -2.8” (7.1 cm) per printhead
  • Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small character text and scannable bar codes
  • Horizontal Print Resolution – 150 dpi or 300 dpi
  • Print Speed – Up to 220 ft/min at 150 dpi; Up to 110 ft/min at 300 dpi
  • Time & Date – Internal real time clock with battery back-up
  • Product Sensor – External photocell or optional encoder
  • Communication Interface – One USB host and one Ethernet input
  • Touchscreen – 4.3” (10.9 cm) full color touchscreen display
  • Ink Cartridge Volume – 500ml
  • Low Ink Indicator – Status alert on touchscreen, LED light beacon optional
  • Substrate Capabilities – Porous or non-porous surfaces
  • Electrical Requirements – 100 – 240 VAC, 50/60 Hz, 65W max
  • Operating Environment – 34°F – 104°F (1° – 40°C)
  • Agency Certifications – CE

Software

  • Time & Date – Full time and date functionality including expiration date and Julian Dates
  • Item Numbering – Sixteen counters, one of which can be a daily counter and production counter
  • Shift Codes – Four programmable shift codes with automatic rollover
  • Bar Codes – All standard bar codes including 2D
  • Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font Software
  • Logos – Most image files supported with Orion software
  • Printing Features – Reverse, invert, rotate, repeat; print on/off button
  • Message Length – Up to 48” (1.2 m)
  • Number of Messages – 1GB storage space will store approximately 1000+ messages
  • Ink Usage – Show in Orion software
  • User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
  • Wireless Connectivity – For wireless connection between PC or tablet and printer controller
  • Database Capability – Ethernet communication protocol for external communication
  • Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian, Polish

Optional Accessories

  • Encoder – For operation with variable speed conveyors
  • Bar Code Laser Scanner – Allows scan and print message retrieval
  • External Light Beacon – Indicates low ink levels
  • Wireless USB Device and Router – For wireless connectivity
  • Windows Tablet – Pre-loaded with Orion software; includes mounting bracket with swivel arm, USB to ethernet cable and stylus
  • Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
  • Floorstand – Includes mounting brackets and legs with leveling feet; 59” (1.5m) total heights
  • Spring Loaded Printhead Bracket – Provides consistent throw distance with inconsistent boxes or products
  • Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves
