CoPilot Max LT Hi-Resolution Industrial Inkjet Printing System

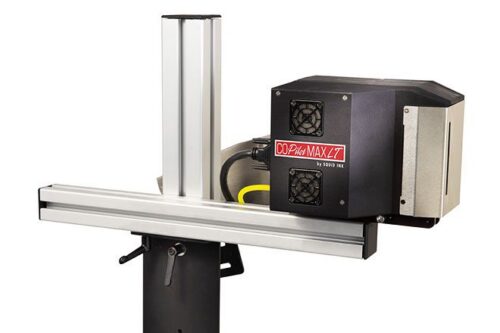

The Squid Ink CoPilot® Max LT is a long-throw, high-resolution industrial inkjet printer built for demanding case coding and packaging applications where product position isn’t always perfect. With an unprecedented 10–12mm throw distance, the CoPilot Max LT is ideal for overfilled cases, recessed print areas, inconsistent product handling, and irregular surfaces—delivering clean, readable codes without constant line adjustments.
Bigger, Better, Faster Performance
Designed for high-speed production, the CoPilot Max LT can run up to 440 ft/min at 150 horizontal dpi or up to 220 ft/min at 300 horizontal dpi. It prints up to 2.8” of message height per printhead and can support up to two printheads from a single controller, giving you flexible coverage for larger cartons, multiple print locations, or more complex messages.
Sharp Codes, Barcodes, and Logos

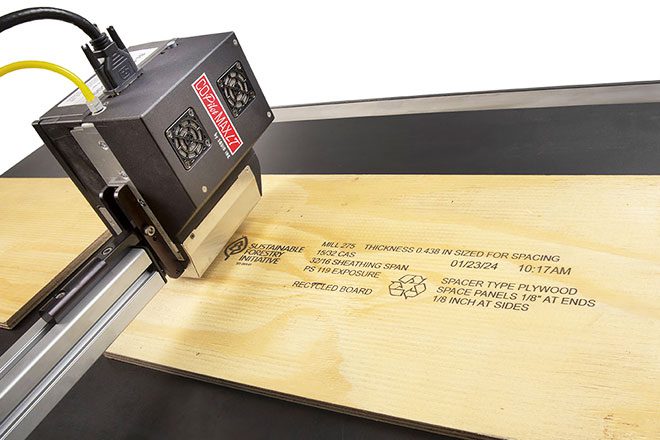

CoPilot Max LT uses Squid Ink’s active ink system, allowing the printhead to tilt or rotate in virtually any direction without needing ink-height adjustments. The system produces razor-sharp text, scannable bar codes, and detailed logos at up to 360 dpi—helping improve readability, scan rates, and overall print quality on the line.
User-Friendly Operation and Rugged Design

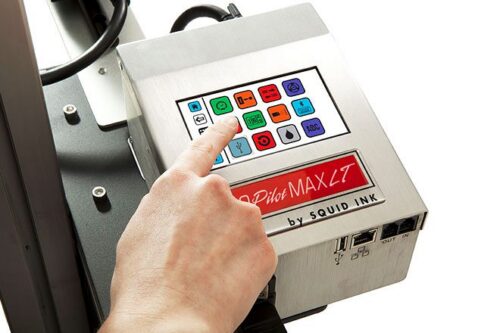

A 4.3” full-color touchscreen provides quick access to internal messages and print functions for fast changeovers and simple operation. Messages are created and edited using Squid Ink’s Orion™ PC software and can be transferred via USB, ethernet, or wireless connection, with optional Windows® tablet support for convenient on-floor message management. Built for industrial environments, the CoPilot Max LT also features durable construction, simplified active ink delivery, and large 500ml snap-in cartridges for fast, low-mess ink changes.
Affordable Product Coding
The CoPilot Max LT helps users meet GS1 barcode requirements while reducing the recurring costs and complexity of labels. By printing directly on cases and packaging, many operations can reduce label inventory, eliminate preprinted cartons, and lower overall consumable costs—without sacrificing print quality.
System
- Print Technology – Piezo impulse printhead technology
- Maximum Print Height – 2.8” (72mm) per printhead
- Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
- Horizontal Print Resolution – 150 dpi or 300 dpi
- Throw Distance – Up to 10-12mm (.4 – .5”) from substrate
- Print Speed – Up to 440 ft/min (134 m/min) at 150 horizontal dpi; Up to 220 ft/min (67 m/min) at 300 horizontal dpi
- Time & Date – Internal real time clock with battery back-up
- Product Sensor – External photocell or optional encoder
- Communication Interface – One USB host and one Ethernet input
- Touchscreen – 4.3” (10.9 cm) full color touchscreen display

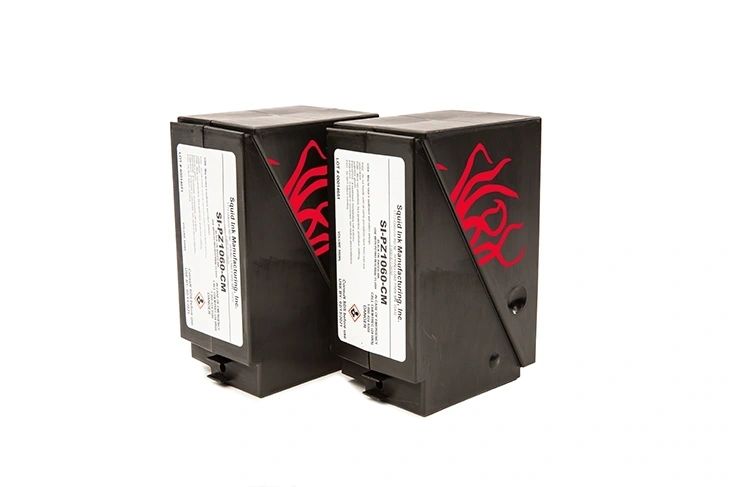

- Ink Cartridge Volume – 500ml cartridge
- Low Ink Indicator – Status alert on touchscreen, light beacon optional
- Substrate Capabilities – Porous or non-porous (future) surfaces
- Electrical Requirements – Input Voltage: 100 – 240 VAC, 50/60 Hz, Power: 240VA maximum
- Operating Environment – 34°F – 104°F (1° – 40°C)
- Storage Environment – 34°F – 122°F (1° – 50°C)
- Agency Certifications – CE, TUV, FCC, UL, CSA
Software
- Time & Date – Full time and date functionality including expiration date and Julian Dates
- Item Numbering – Sixteen counters, one of which can be a dailycounter and production counter
- Shift Codes – Four programmable shift codes with automatic rollover
- Bar Codes – All standard bar codes including 2D
- Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
- Logos – Most image files supported with Orion software
- Printing Features – Reverse, invert, rotate, repeat; print on/off button
- Message Length – Up to 120” (3.05m)
- Number of Messages – 1GB storage space will store approximately 1000+ messages
- Ink Usage – Shown in Orion software
- User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
- Wireless Connectivity – For wireless connection between PC or tablet and printer controller, requires external wireless USB adaptor
- Database Capability – Ethernet communication protocol for external communication
- Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian, Polish
Optional Accessories
- Encoder – For operation with variable speed conveyors
- Bar Code Laser Scanner – Allows scan and print message retrieval
- External Light Beacon – Indicates low ink levels
- Wireless USB Device – For wireless connectivity
- Windows Tablet – Pre-loaded with Orion ™ software; includes mounting bracket with swivel arm, USB to ethernet cable and stylus
- Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
- Floorstand – Includes mounting brackets and legs with leveling feet; 59” (1.5m) total height
- Lead Screw Floorstand – Includes mounting brackets and legs with leveling feet and casters and lead screw to easily dial in height and distance to substrate
- Spring Loaded Printhead Bracket – Provides consistent throw distance with inconsistent boxes or products
- Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves
