Specifications
- Dimensions: 86.4″W × 144″L × 67.3″H
- Label dispense speed: 3000 ipm
- Label roll capacity: 16″ OD
- Web width: up to 6.375″
- Electric: 120 VAC
- Shipping weight: approx. 1700 lbs

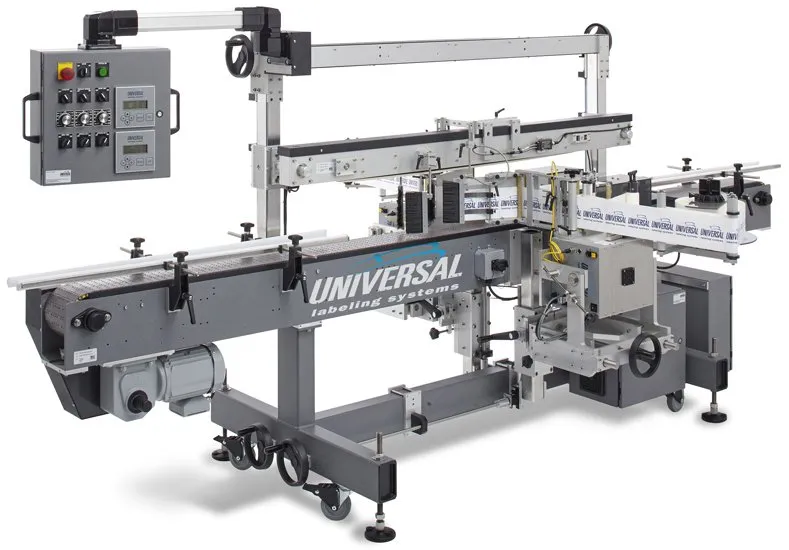

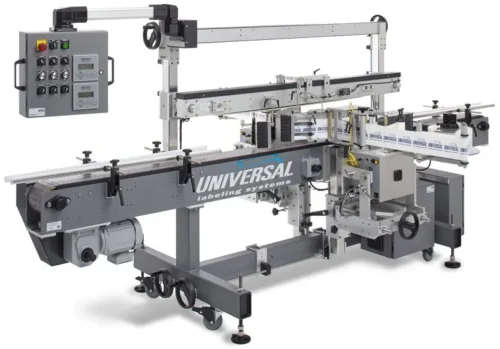

Front & Back Contract Packager System
The best high speed multi-purpose labeling system just got better! Universal Labeling Systems announces major advancements in the labeling technology of their Contract Packager Series. The CP 2000 has a digital control package, and multi-level system adjustments not found in standard “front & back” labeling systems. The CP2000 can apply labels as wide as 10.125 inches! The CP2000 can label fronts & backs of F style containers, apply and orient labels on one gallon jugs, and apply multi-side labels to oval and square bottles, and all with limited changeover! All of this in one system…the CP2000 system.
Features
- Heavy-duty system framework
- 6″ wide × 12′ long Delrin chain conveyor
- All AC drives
- Product metering wheel
- Synchronous product positioning device
- Synchronous overhead hold-down
- Photoelectric product sensor
- Two high-speed SL2000 stepper-driven label applicators
- Label dispense speed up to 3000 ipm
- Encoder with speed-following control
- Secondary label wipe-down devices
- 6.25″ wide web capacity
- 16″ label roll capacity, 3″ core
- Job save option
- UL-certified NEMA 12 control enclosure with multi-level menu system
