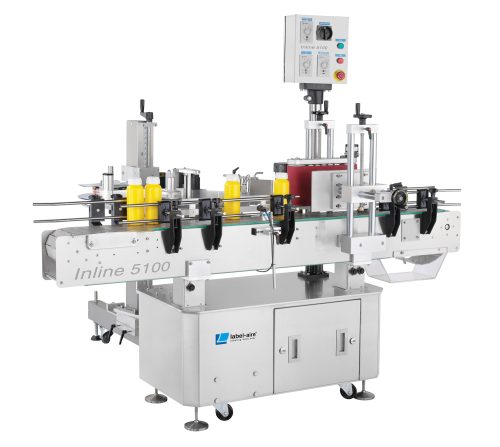

Label-Aire Inline Series 5100-TS

Item: 5100-TS

The NEW Label-Aire® Inline 5100-TS labeling system is designed to offer you advanced features while also making labeling easier, faster, and more affordable… making your operation more profitable.

The advanced Inline 5100-TS is a rugged stainless steel cabinet based (including frame and side plates) labeling system that can be outfitted with Label-Aire’s full range of Label-Aire New Generation 3100/3000 Series applicators (wipe-on, air-blow, or tamp-blow). The Inline 5100 also has a smooth-running Variable Frequency Drive (VFD) conveyor which improves label placement accuracy. For added convenience, this model automatically spaces your products and has a user-friendly operator interface. All these features means the Inline 5100 easily adapts to your growing needs. Designed for reliable full- and partial wrap labeling at medium- to high speeds, high-volume, multi-shift operations, the tough and advanced Inline 5100-TS delivers.

NOT AVAILABLE FOR THE EUROPEAN MARKET

Features

  • Main Drive:
    Line Speed Variable Frequency Drive (VFD) up to 1,200″ (30.48 m) per minute
  • Construction:
    Frame Stainless Steel
    Cabinet Stainless Steel
  • Conveyor: Stainless Steel Side Plates
    Width 6.0″ (152.4 mm)
    Length 6′ (1,828.8 mm) center line-to-center line
    Height 36″ (914.4 mm) ± 2″ (50.8 mm)
  • Applicator: Label-Aire 3100/3000 Series Primary Applicators
  • Operator Interface: VFD Speed Control
    Control Push Button Start/Stop
  • Metering Wheel: Single
    Drive VFD
  • Wrap Belt:
    Drive 7.0″ (177.8 mm) Wide x 12.0″ (304.8 mm) Long VFD

Specs

  • Dimensions:
    Height: 71″ (1,804.35 mm),
    Length: 78.74″ (2,000 mm),
    Width: 33.41″ (848.70 mm)
  • Weight:
    Approx. 1,050 lbs. (475 kg)
  • Standard Label Dimensions: **
    Max. Web Width: 7.13″ (181 mm)
    Min. Web Width: .63″ (16 mm)
    Min. Label Length: .5″ (13 mm)
  • Label Packaging: **
    12″ (305 mm) O.D. rolls std. on 3″ (76 mm) I.D. cores
    Up to 16″ (406 mm) or 20″ (508 mm) roll with optional 16″ (406 mm) non-powered rewind or 20″ (508 mm) powered unwind
  • Conveyor Speed:
    Up to 1,200″ (30.48 m) per minute with Variable Frequency Drive (VFD)
  • Label Dispense Accuracy: **
    Up to +/- 1/32″ (.8 mm)
  • Electrical:
    120 Volts AC 60 Hz 20 Amps.,
    220 Volts AC 50 Hz optional (CE)
  • Air:
    2 cfm at 60 psi to 90 psi required with imprinter option

*Without label applicators
**Model 3115 Wipe-On specifications
